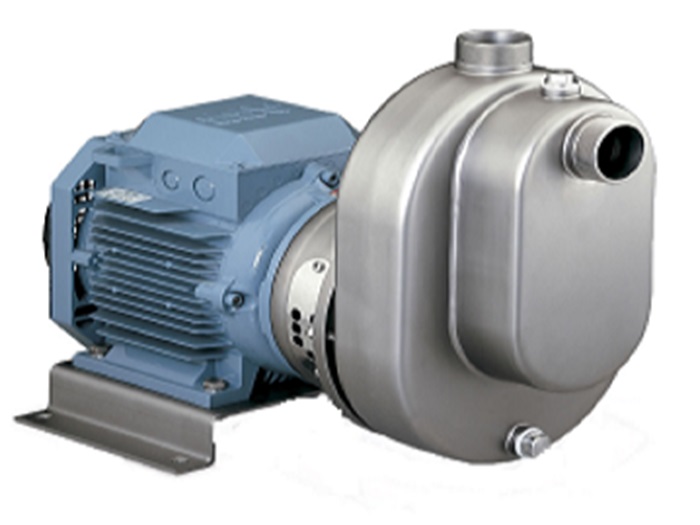

PHM-HDX345 Self Priming Pumps
Typical applications:
Centrifugal pump for clear liquids, self-priming up to 3m
Self-priming stamped body (with priming chamber)
Specially designed for operating with liquids that contain air or gases and without losing pumping capacity (e.g., CIP return)
Joined together with screwed ring
High hydraulic output, semi-open impeller produced by microfusion techniques
Minimum thickness 3mm
Single internal mechanical seal
GAS or DIN 11851 connections (CLAMP, IDF, SMS, flanges, etc. optional)
Accessed from above for manual priming, with inferior drain port
Bshed matt finish and stainless steel baseplate
Technical Specification
Maximum flow :
Maximum differential head :
Power :
Temperature :
Maximum viscosity :
Rotation speed :
Material :
Applications :
60 m3/h (1000 l/min)
3 bar (30 mWC)
0.33 – 4 kW (0.25 – 5.5 hp)
-15 – +130 ºC
20000 cP
1450 – 960 – 725 rpm (50 Hz)
1750 – 1150 – 850 rpm (60 Hz)
AISI 316 (EN 1.4401)
Milk, Yoghurt, Wine, Oils, Juices, Syrups, Honey, Jams, Creams, SoLMK, Gels, etc.
