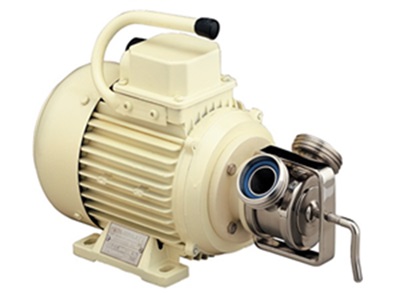

FLX-FIP745 IMPELLER PUMPS
FLX-FIP745 Flexible impeller pump, self-priming up to 3m, Broad range of applications (clear liquids, viscous liquids, foodstuffs, delicate liquids, products with solids, etc.), Impeller with flexible blades made from Nitrile or EPDM, Very easy to, disassemble, clean and maintain (joined using a clamp), Fully reversible thanks to its symmetrical and adjustable body, Compact and transportable size, Single internal mechanical seal, DIN 11851 connections (GAS, CLAMP, SMS, flanges, etc. optional), Internal and external polished finish
Technical Specification
Maximum flow :
Maximum differential head :
Power :
Temperature :
Maximum viscosity :
Rotation speed :
Material :
Applications :
60 m3/h (1000 l/min)
3 bar (30 mWC)
0.33 – 4 kW (0.25 – 5.5 hp)
-15 – +130 ºC
20000 cP
1450 – 960 – 725 rpm (50 Hz)
1750 – 1150 – 850 rpm (60 Hz)
AISI 316 (EN 1.4401)
Milk, Yoghurt, Wine, Oils, Juices, Syrups, Honey, Jams, Creams, SoLMK, Gels, etc.
